The Heart of HP&MP Cone Crushers: Inside the Gear Eccentric Assembly

Introduction

In HP series cone crushers, the Eccentric Assembly is often referred to as the “heart” of the machine.
It converts power from the drive system into the eccentric motion of the main shaft, creating the crushing action inside the chamber. Every crushing cycle depends on the stability and reliability of this critical component. A high-quality eccentric assembly not only improves crusher performance but also helps reduce vibration, maintenance costs, and unexpected downtime.

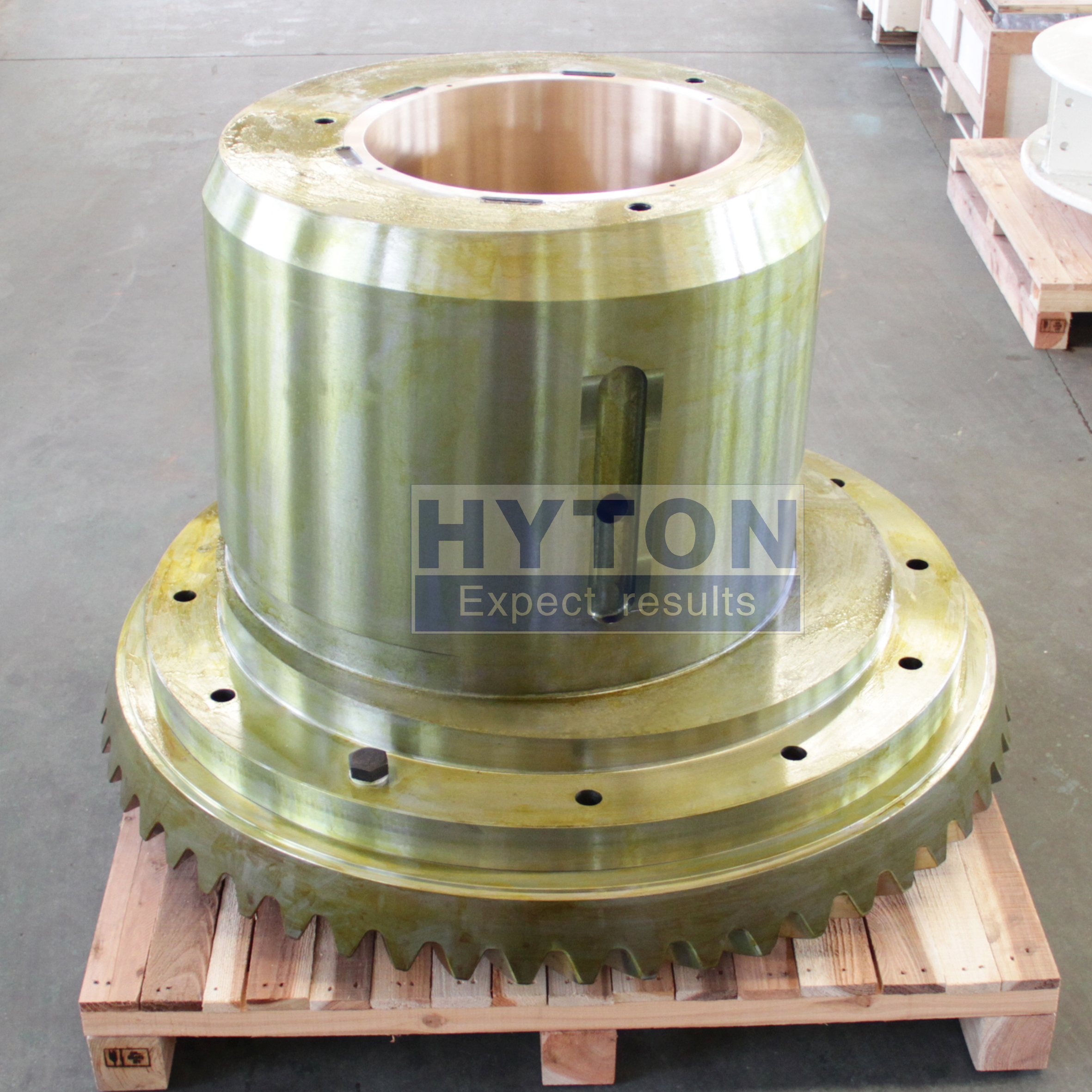

Key Components of an Eccentric Assembly

A complete HP series eccentric assembly typically includes:

• Eccentric Gear

• Eccentric Sleeve

• Eccentric Bushing

• Upper Thrust Bearing

• Filler Material

• Fasteners and Locating Components

Although the structure appears straightforward, the quality of each component directly affects the performance and service life of the entire crusher.

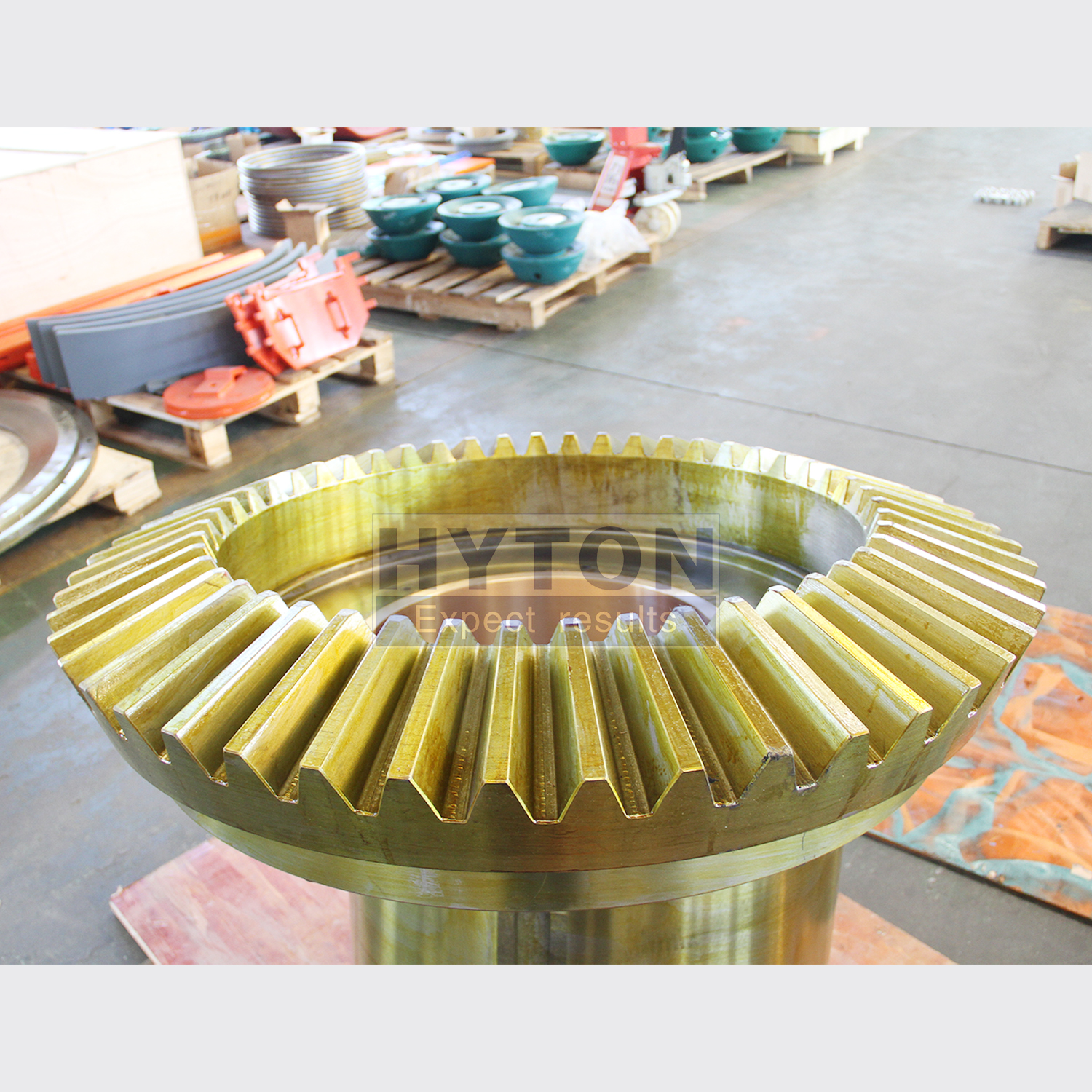

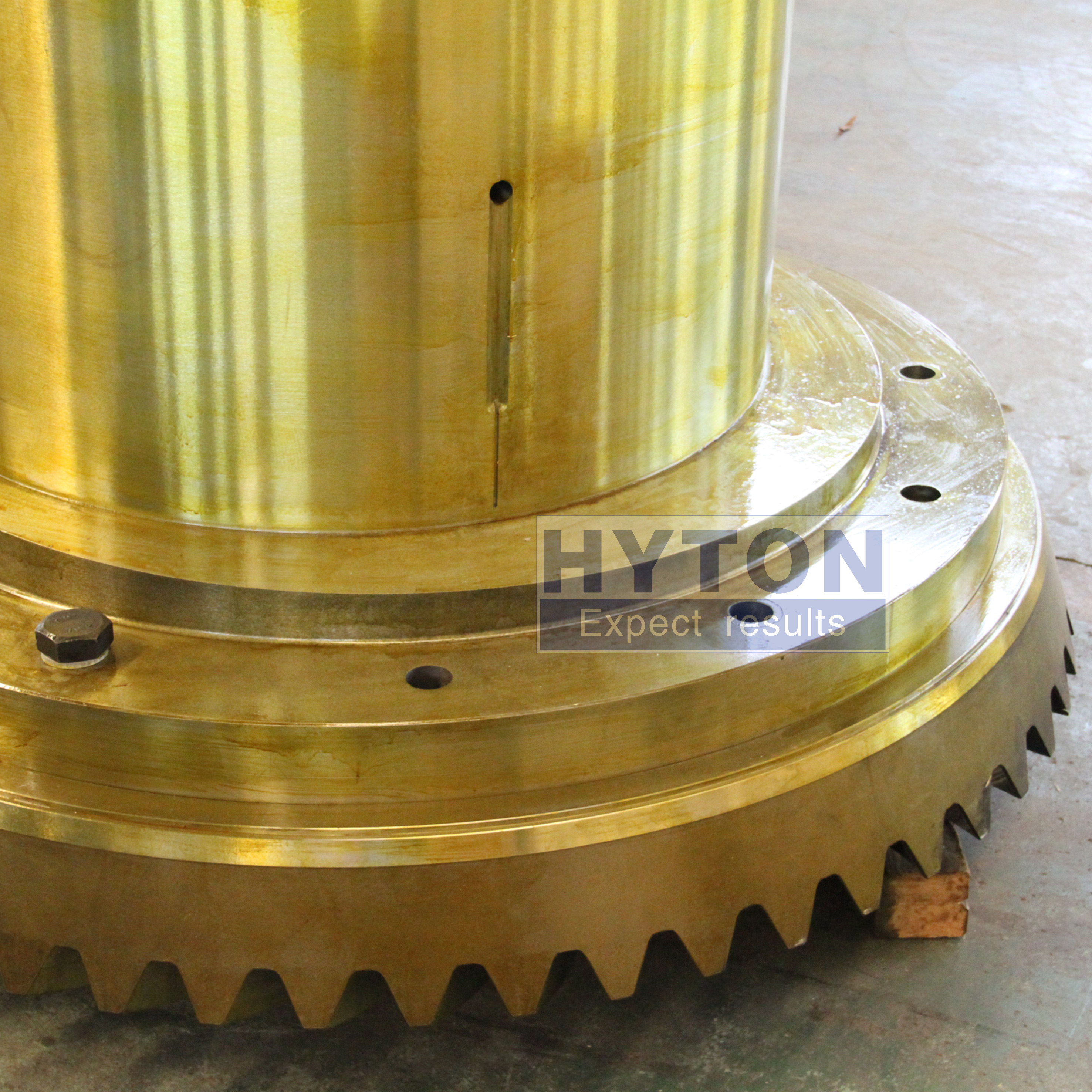

The Gear: Transferring Massive Power

The eccentric gear is responsible for transmitting power from the pinion gear to the eccentric mechanism. During operation, it continuously withstands heavy torque, impact loads, vibration, and harsh working conditions.
Material Selection: High-quality steel grades provide superior strength, toughness, wear resistance, and fatigue life.
Machining Accuracy: Precision manufacturing, including CNC machining, gear hobbing, finishing, and inspection, ensures stable operation and minimizes premature wear.

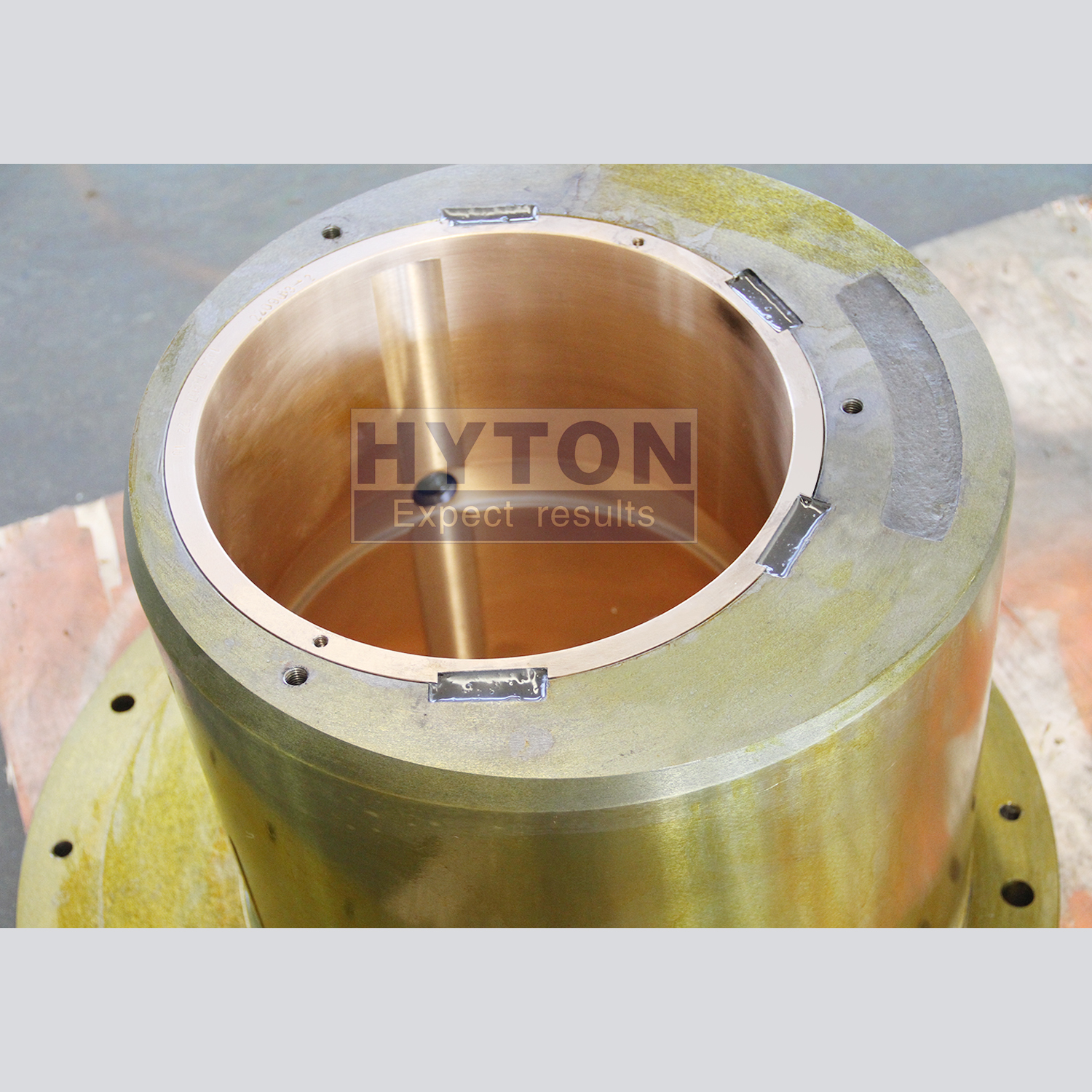

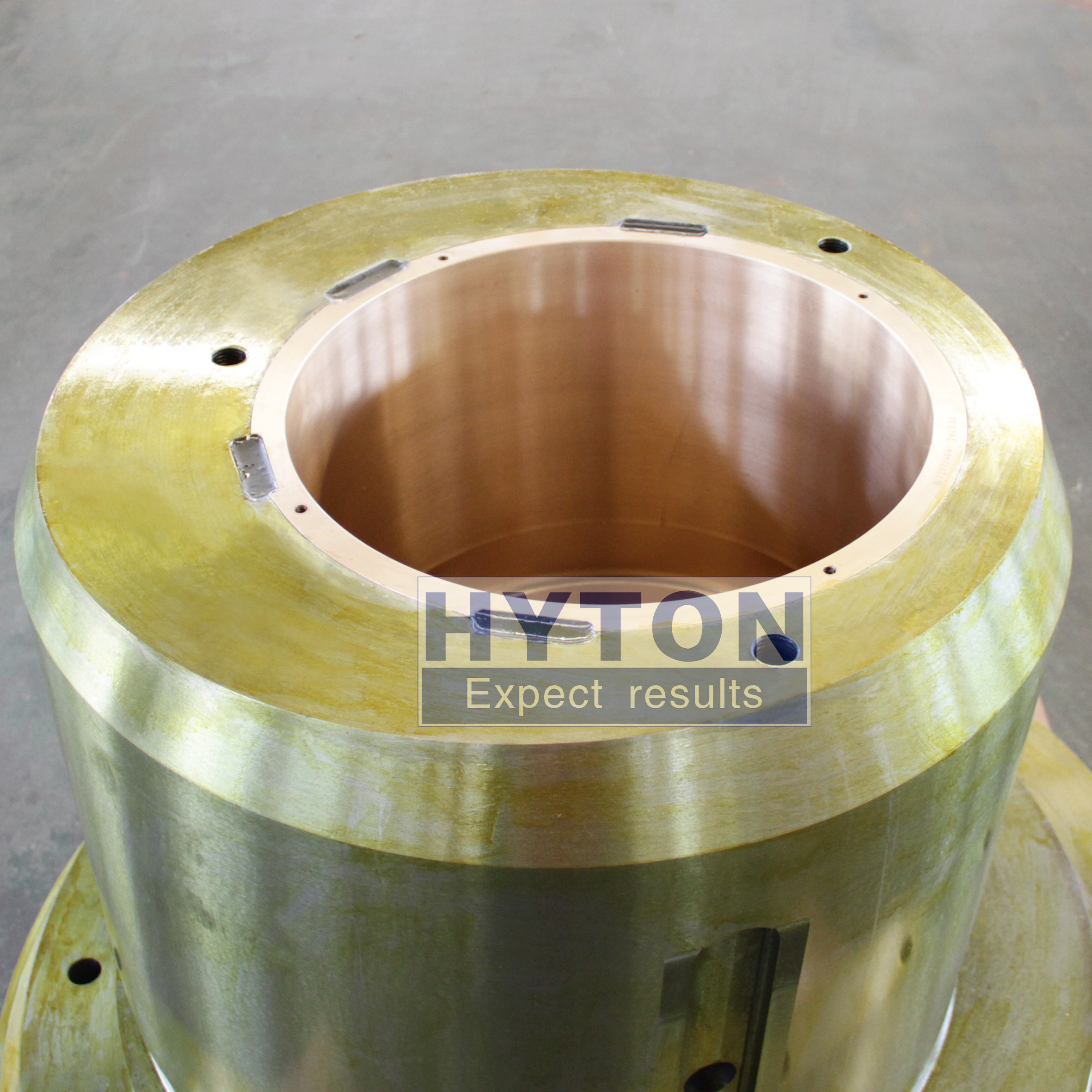

The Bronze Bushing: The Key to Stability

The bronze bushing supports the movement of the main shaft and plays a crucial role in lubrication performance, operating stability, temperature control, and service life.
Common materials include Tin Bronze and Aluminum Bronze, selected according to crusher model and operating conditions.

Assembly Quality Matters

Before installation, the bronze bushing and upper thrust bearing are placed in dry ice for several hours to create slight thermal contraction. Meanwhile, the eccentric gear is heated to expand its bore.
The contracted bronze components are then installed into the heated gear. As temperatures return to normal, a precise interference fit is formed, reducing assembly stress and improving reliability.
After final positioning, filler material is poured into the designated space to enhance structural stability.

Conclusion

The eccentric assembly is one of the most important components in any HP cone crusher. From gear material selection and machining precision to bronze bushing quality and assembly procedures, every detail influences crusher performance and service life.
A well-manufactured and properly assembled eccentric assembly helps ensure stable power transmission, longer component life, and reliable operation in demanding mining and aggregate applications. Hyton provides one-stop wear and spare parts solution for HP&MP series cone crushers. Here are the sppecific part numbers for the HP&MP Series gear eccentric assembly. Please refer to them:
